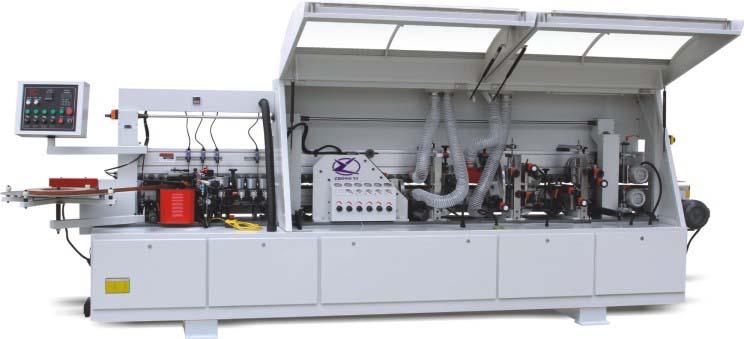

TC-60C 全自動封邊機(jī)
Features
1. Stable performance, suitable for different bandings.
2. A best solution for effective and qualitative working.
3. The glue port can be replaced by an optional EVOK made clean-free PUR system.
4. High edge banding speed up to 25-30m/Min.
5. Including functions: Gluing/Edge feeding/Edge cutting/Ends trimming/Rough finish/Fine finishing/ Scraping/Polishing
Technical Specs
◎Power source: 380V/50Hz/3HP+N
◎Min. panel width: 60mm
◎Min. panel length:100mm
◎Panel thickness: 10-60mm
◎Banding belt thickness: 0.3-12mm
◎Banding belt width: 12-65mm
◎Feeding speed: 10-30m/Min.
◎Air pressure:0.6-0.8Mpa
◎Total power:9.8KW
◎Machine size:4800x950x1750mm
◎Machine weight:2000kg
